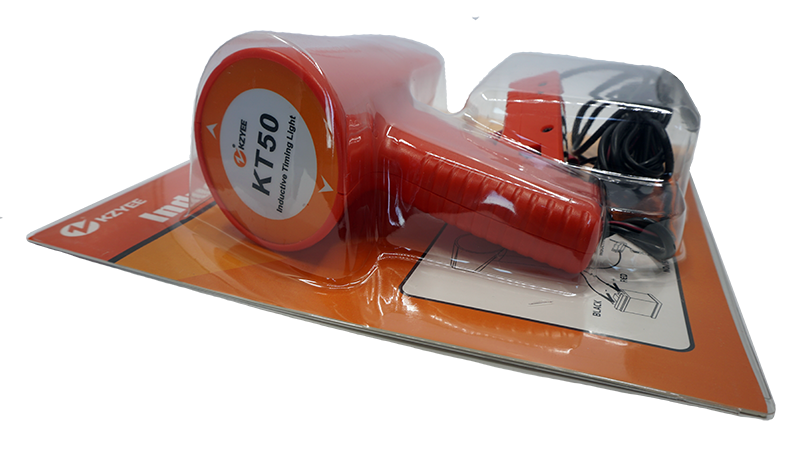

Introduction of KT50
1.  For checking and setting ignition timing on automotive, agricultural and marine engines.
2.  For use on 12 volt systems.
3.  Reverse polarity protected.
4.  Accurate to 8, 000rpm.
5.  150cm long durable power leads.
6.  Impact resistant housing.
7.  On/off trigger switch.
8.  Bright linear Xenon flash tube for daylight use.














 Operating Instructions
1.  Clamp the inductive pick-up around the No.1 Spark Plug wire. Make sure the arrow on it is facing towards the spark plug. Do not allow the inductive pick-up to touch the exhaust manifold or surrounding parts as these areas become extremely hot and will damage the inductive pick-up.
2.  Connect the RED clamp to the positive (+) battery terminal.
3.  Connect the BLACK clamp to a secure engine ground such as the alternator bracket or the engine block. For safety reasons, do not use the negative (-) battery terminal or fuel system components as a ground connection point.
