The Automobile Brake Fluid (Hereinafter referred to as brake fluid) is a kind of liquid that used to transfer pressure to stop the rotation of wheels in the hydraulic braking system. Its quality, selection and using correctly or not will relate to the driving safety directly.

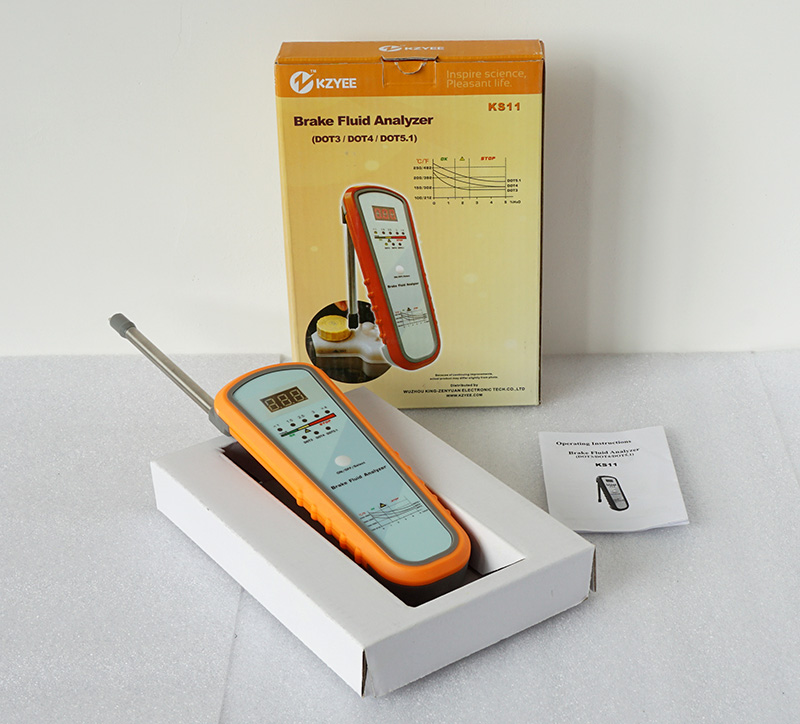

The Brake Fluid Analyzer which developed and produced by our company can test the brake fluid quality quickly and accurately, check the humidity to indicate you the brake fluid state, and providing you with reliable basis for the maintenance and replacement.

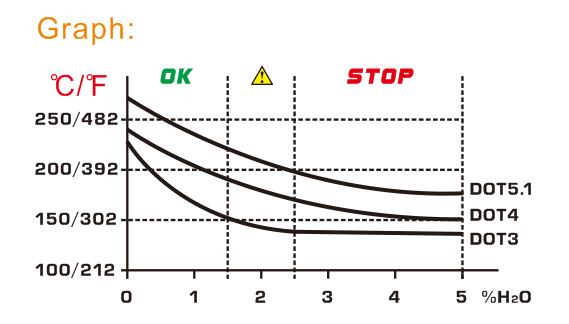

Different types of brake fluid will vary according to the different boiling point of the water contained, the brake fluid should be replaced timely when its water content is over standard, to ensure your driving safety.





Features

Detect the brake fluid performance quickly by measuring the water content of the brake fluid, in order to replace the brake fluid timely.

This instrument applies to DOT3, DOT4 and DOT5.1 these three types of brake fluid testing, using the AC pulse testing method, greatly to reduce the polarization phenomenon during the brake fluid testing, the test result is accurate and the measuring speed is fast.

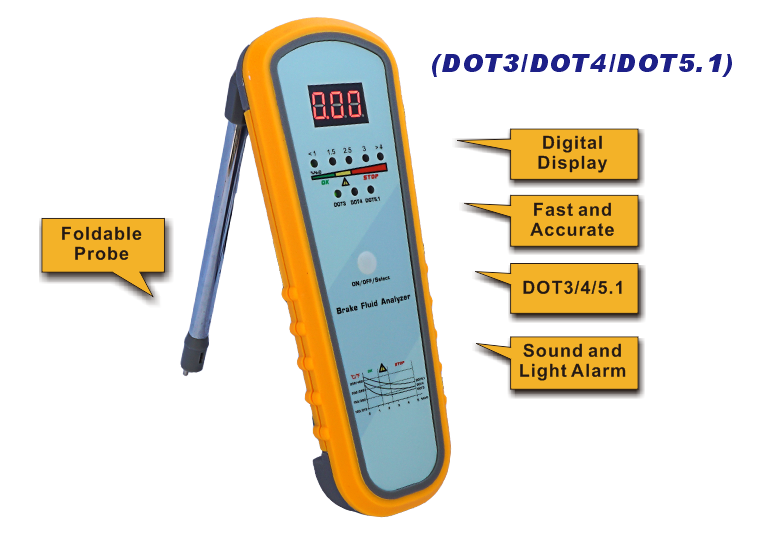

This instrument is equipped with digital tube digital display, sound and light alarm combining LED lights and buzzer, automatic power off function to save power, it is intuitive and easy to understand, convenient to carry.



Interpretation of test results:

Green LED (＜1%) ON: The brake fluid performance is excellent
Yellow LED(＞1.5%) ON: The brake fluid performance is fine
Yellow LED(＞2.5%) ON: The brake fluid performance is OK, but it need to be detected and observed in the near future
Red LED(＞3%) ON: The brake fluid performance is poor, it need to be replaced
Red LED(＞4%) ON: The brake fluid performance is extremely poor, it need to be replaced immediately !
