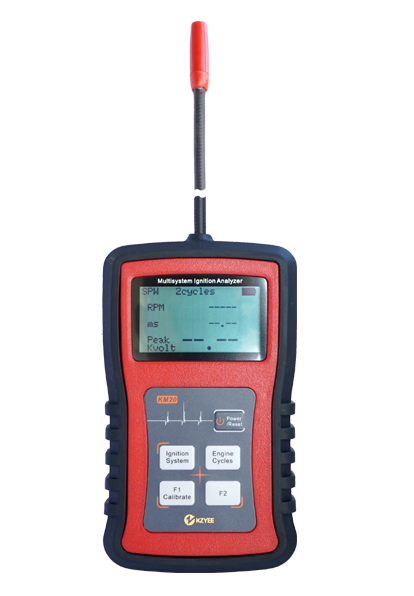

KM20 Multisystem Ignition Analyzer

Product

The ignition analyzer can be used to measure each cylinder speed of the car engine, high voltage ignition coil

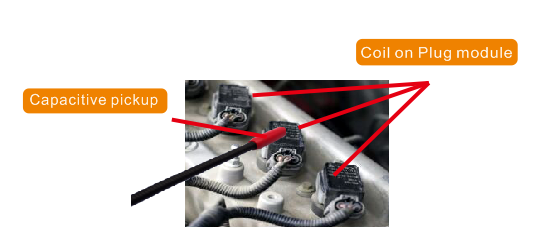

The ignition analyzer can be used to measure each cylinder speed of the car engine, high voltage ignition coil ignition voltage and the injection time of each cylinder. It is induction type, without dismantling any pats, you can test the general distributor type SPW and ignition coil type COP. It can dynamically display the parameters and display the maximum and minimum range.
● Measures RPM
● Measures spark volt
● Measures spark burn time
● Advanced microcontroller technology
● No ground wire connections required

Function	Measurement Range	Accuracy/ Repetitivity	Input Characteristics
RPM	200 to 19999 RPM 2 and 4 cycles and DIS	Accuracy: 0.5%±1 LSD	Input Impedance: 100KΩ+ 1.5 nF (Minimum). Input Protection: ±42 VDC Max.
Spark KV	0 to 50 Kv	Repeatability: 3%±1 LSD
Spark burn time	0 to 10 ms	Accuracy: ±0.1ms

KM20-Manual-V1

KM20 Multisystem Ignition Analyzer
